Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Panel Resolution | 3840*2160 |
|---|---|
| LCD Size/Type | 55”TFT-LCD |
| Video Signal Input | VGA and DVI , HDMI – optional |
| Power Supply | DC 12V 4A |
| Ports | "1*HDMI input |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-755-28193671
| Display Specifications | |||
| Characteristic | Value | Comment | |
| LCD Size/Type | 55”TFT-LCD | ||
| Aspect Ratio | 16:9 | ||

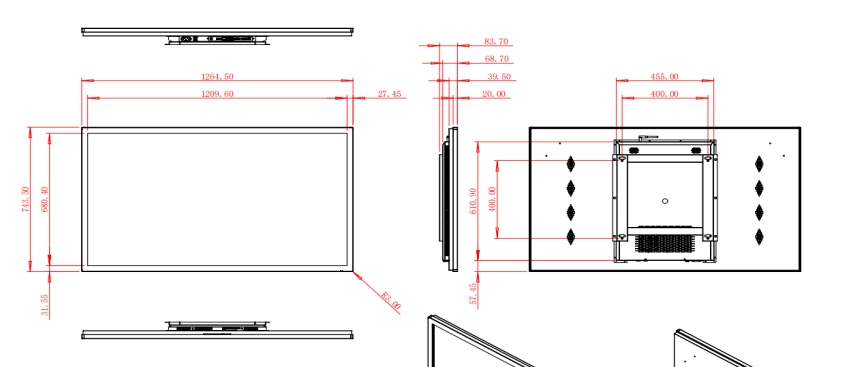

| Display size | Horizontal | 1209.6mm | |
| Vertical | 680.4 mm | ||
| Pixel | Horizontal | 0.315 | |
| Vertical | 0.315 | ||
| Panel Resolution | 3840*2160 | Native | |
| Display Color | 1.07Bit | 6-bits + Hi-FRC | |
| Contrast Ratio | 1000:1 | Typical | |
| Brightness | 350 nits (1000 optional) | Typical | |
| Response Time | 5 ms | Typical | |
| Viewing Angle | Horizontal | 178 | Typical |
| Vertical | 178 | ||
| Video Signal Input | VGA and DVI , HDMI – optional | ||
| Electrical Specifications | |||
| Power Supply | DC 12V 4A | Power Adapter Included | |
| 100-240 VAC, 50-60 Hz | Plug Input | ||
| Power Consumption | Operating | 38 W | Typical |
| Sleep | 3 W | ||
| Off | 1 W | ||

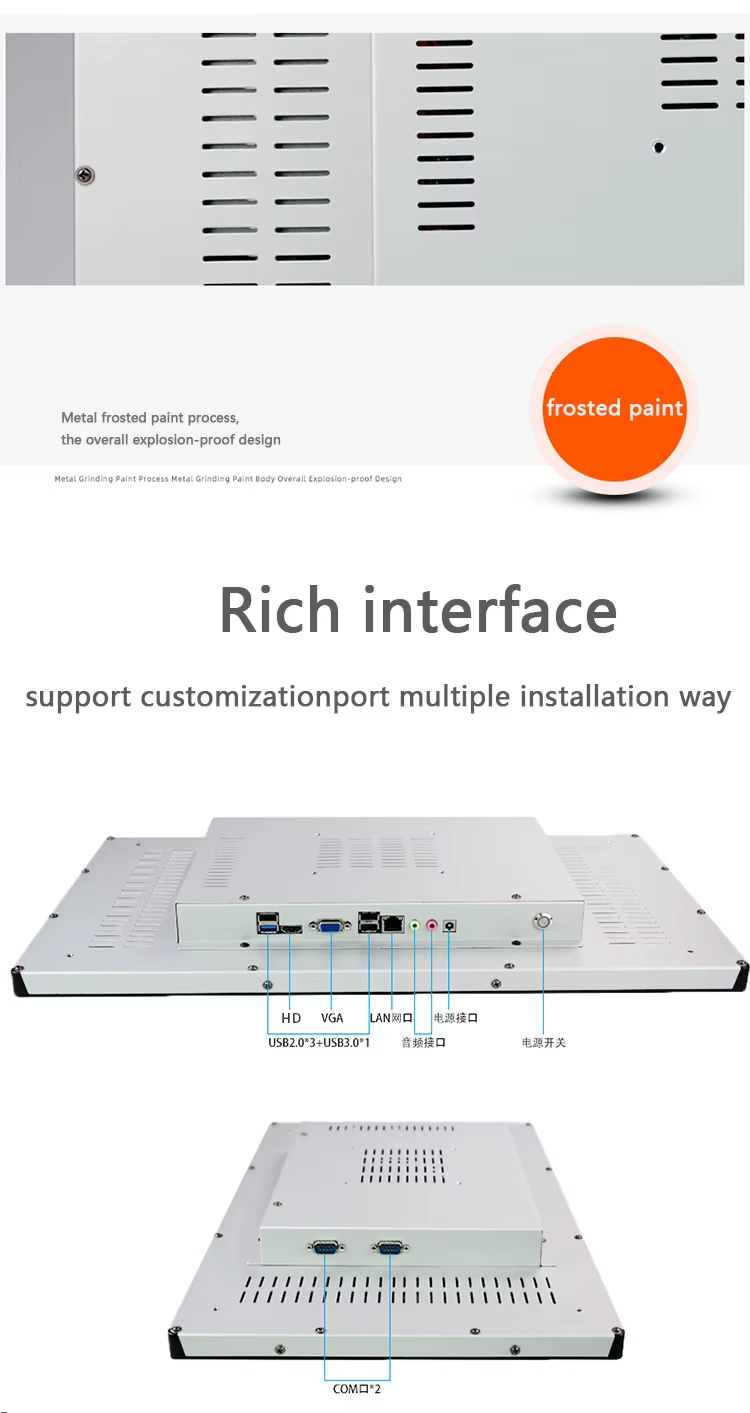

| Ports | 1*HDMI input 1* VGA input 1* 3.5mm earphone 1* DC port 5.5*2.1 |
||
| Accessories | 1*Power cable 1*power adapter 1*VGA cable 1*HDMI cable 1*User manual |
||
| Environmental Specifications | |||
| Condition | Specification | ||
| Temperature | Operating | -10°C ~+ 50°C | |
| Storage | -20°C ~ +70°C | ||
| Humidity | Operating | 20% ~ 80% | |
| Storage | 10% ~ 90% | ||
